4 axle side curtain trailer

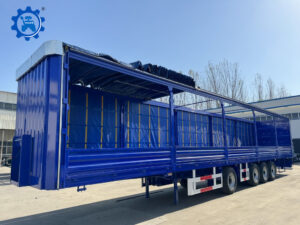

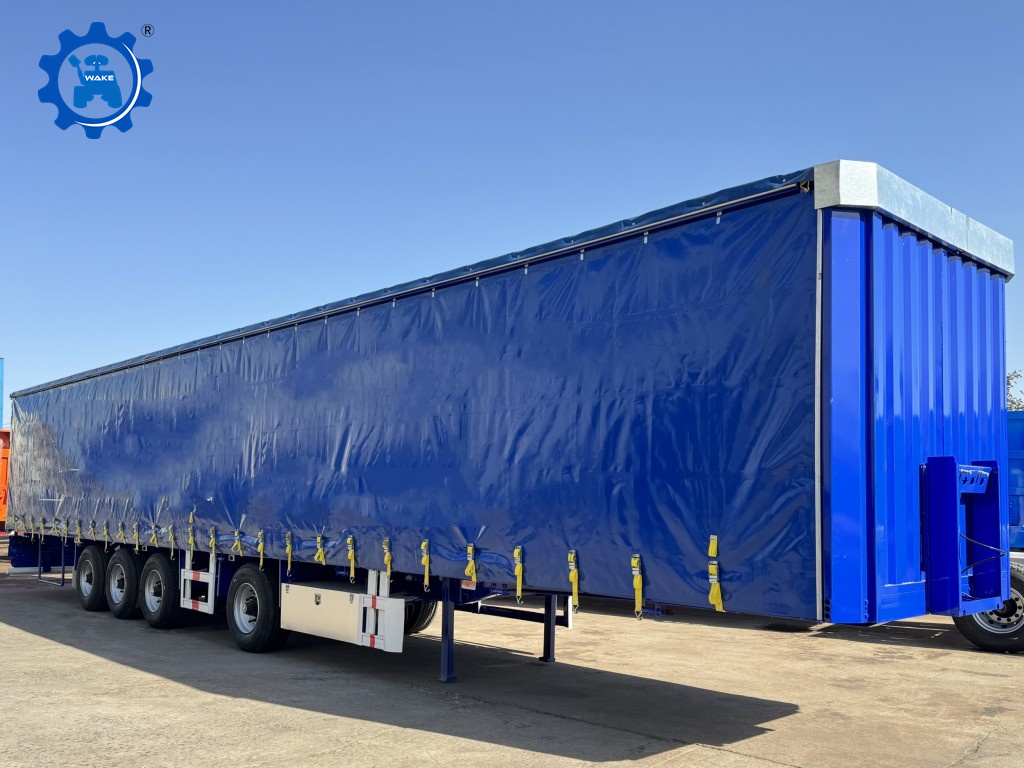

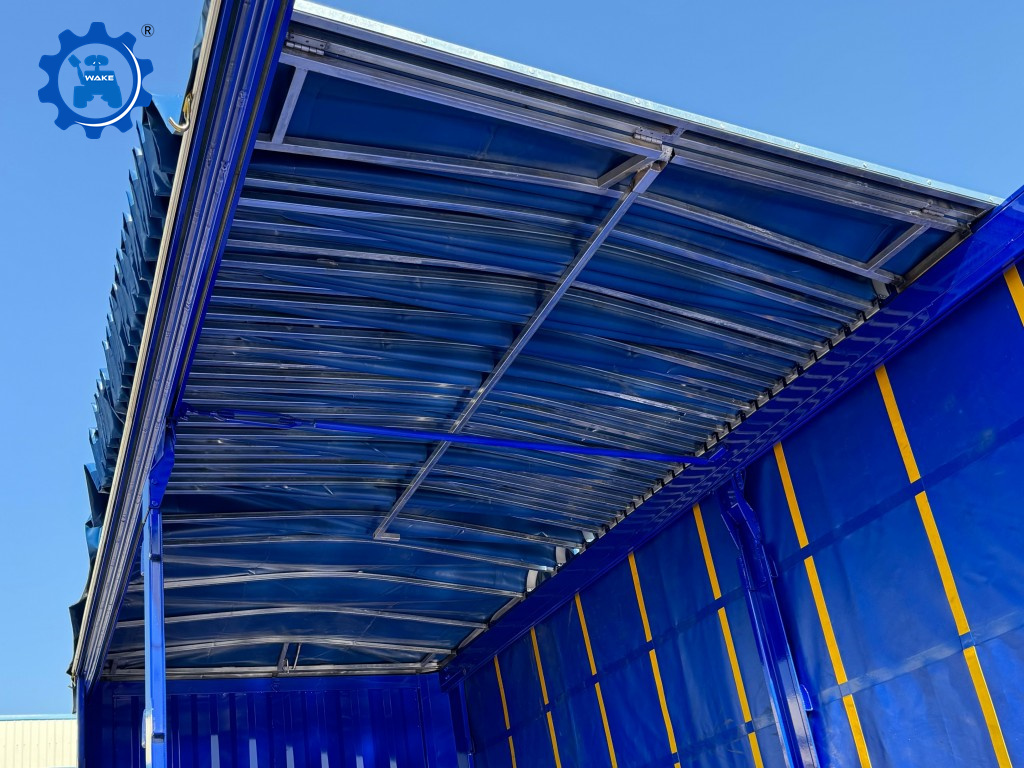

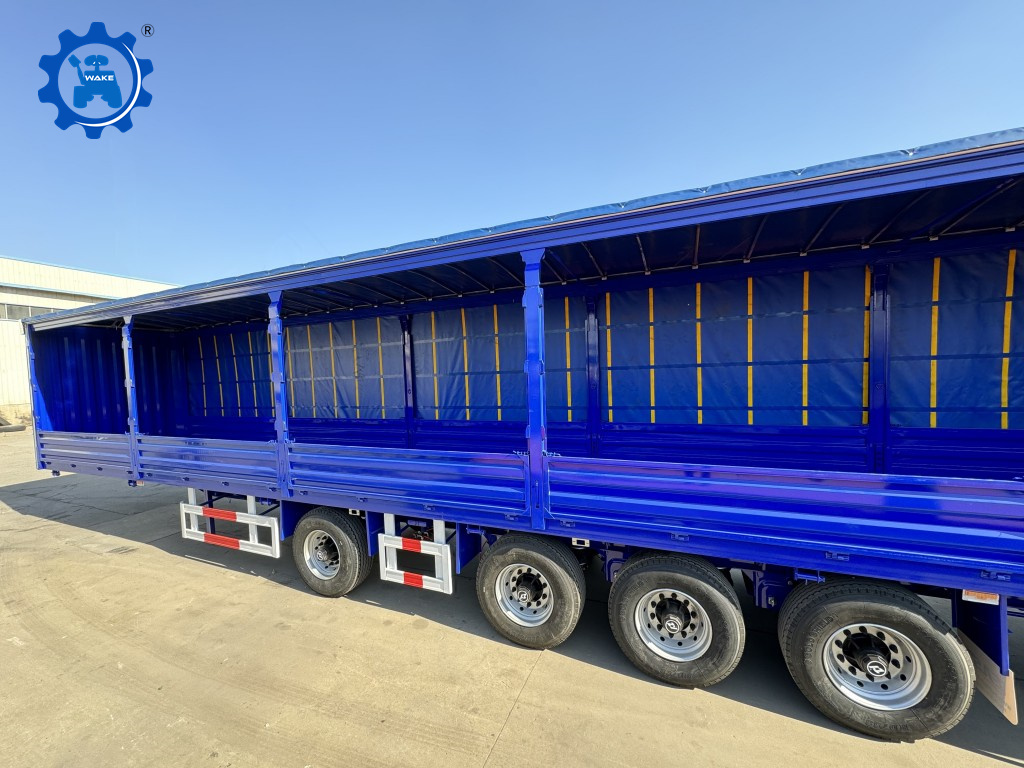

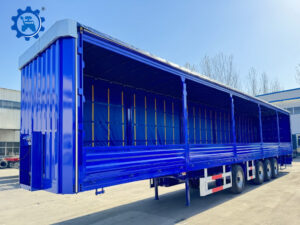

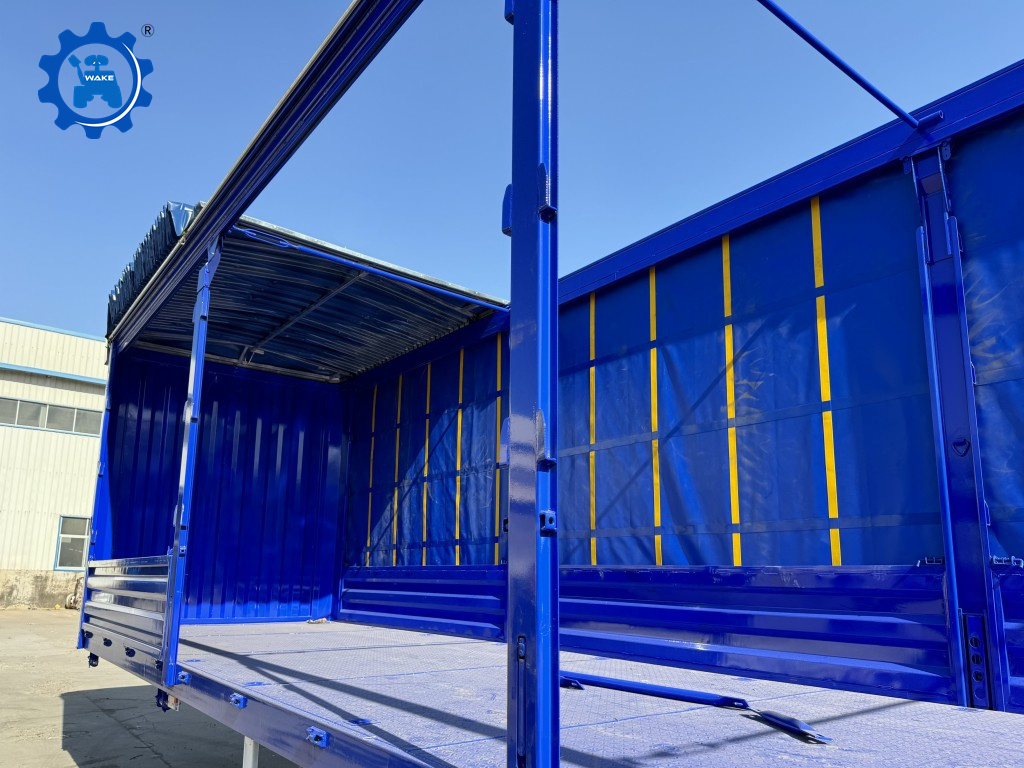

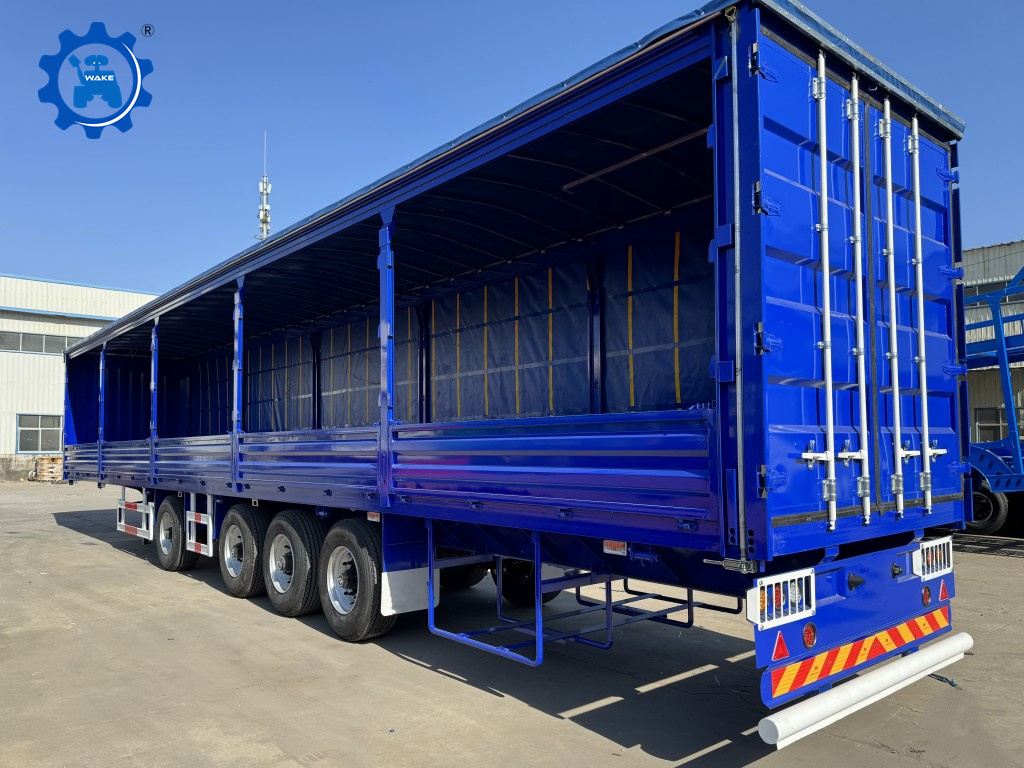

The length of the four-axle side curtain semi-trailer is 17 meters, the width is 2.6 meters, and the height is 4 meters. Side walls are installed on both sides, the columns can slide, and the roof can slide.

All four axles are air suspended and have a one-button lift function. The first axle has a lift and uses a single tire.

High-strength knife scraping cloth, 950g/square meter, thickness 0.75mm, reinforcing rib is 2 tons of special webbing, performance, waterproof, sunscreen, anti-aging, anti-UV, fire retardant, opaque. Commitment: ten years of no fading, no peeling, no cracking, no elegance.

Specification：

Overall dimension：17000mm * 2600mm *4000mm

Loading capacity: 60 ton

Axles：4 axles

Suspension：air suspension

Tire：8 units

Landing gear：28 T

Brake system: WABCO

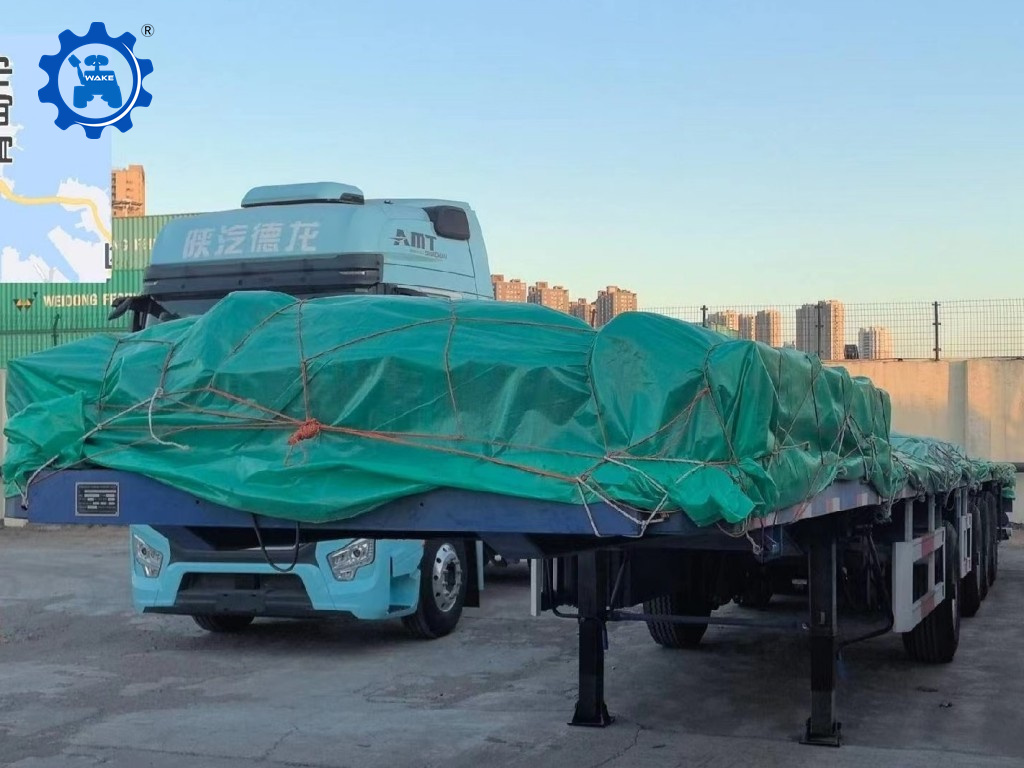

Shipping Method，Before leaving the factory, the trailers are sprayed with wax and then covered with tarpaulin. Three trailers in a group can save more shipping costs.
